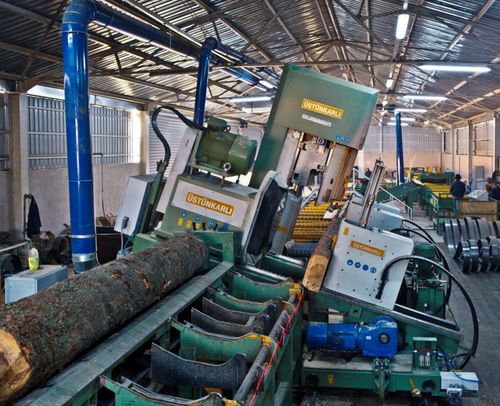

Fixed headblocks log carriage

inclined

•Comfortable, easy to use, operator friendly remote control •Manufactured from 200 mm I-beams. Heavy and strong mainframe •Independent horizontal hooks movement for easier positioning of logs •Fixed fence-horizontol movable hooks. The distance between fence and hooks can be adjusted do desired position (min: 15 mm- max: 170 mm) •In the advanced controlled log carriages, by the help of independent horizontal move hooks, log is able to be easily aligned according to cut axis while clamped (optional) •Hydraulic system centrifugal turning arms. Turning arms inclination up to 90°. •Landing of the log edge onto the band as the clean surface always face down by the help of 17° inclined structure. •Faster log turning in small diameters with pneumatic clasping arms. •Selectable hooks and log turning arms. •Chains of turning devices are driven by reducer •Log holding steel bars that protect the headblock guides getting damage by log and make the log to be turned easily •Electronic thickness gauging system manufactured and designed by USTUNKARLI, has the possibility of remaining and outgoing thickness gauging, 8 memories and entering values directly •Automatic central lubrication
