Trailer-mounted forestry crane Vahva Jussi 420
knuckle boom

trailer-mounted forestry crane
trailer-mounted forestry crane
trailer-mounted forestry crane
trailer-mounted forestry crane
Add to favorites
Compare this product


Characteristics

Type
trailer-mounted
Other characteristics
knuckle boom
Load rating

Max.: 1,100 kg
(2,425.1 lb)

Min.: 240 kg
(529.1 lb)

Reach

Max.: 4.2 m
(13'09" )

Min.: 0 m
(0'00" )

Description

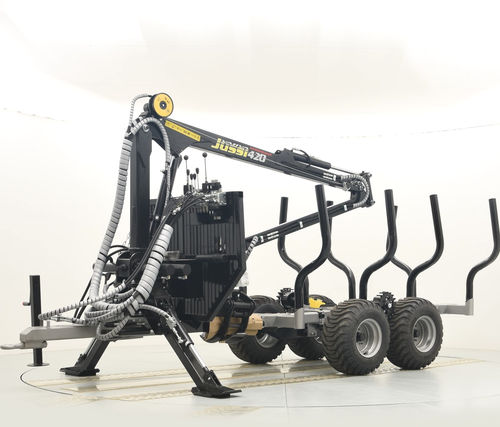

Vahva Jussi 420 log crane with total reach of 4.2 meters. Crane Vahva Jussi 420: Crane reach: 4,2m Lifting capacity: 530kg(3,0m) Lifting capacity: 360kg(4,2m) Slewing cylinders: 2. pcs Grapple m2: 0,12 Rotator: 3,0t Crane turning radius: 380° Weight(incl. support legs): 540 kg Working pressure: 190 bar Hydraulic pump: 15-45 L/min Trailer 3000: Dimensions: 4240×1579 mm Weight trailer: 550 kg Load capacity: 3000 kg Low pressure tires: Starco SG 300/65-12 Length of loading area: 2,7m - 3,7m
