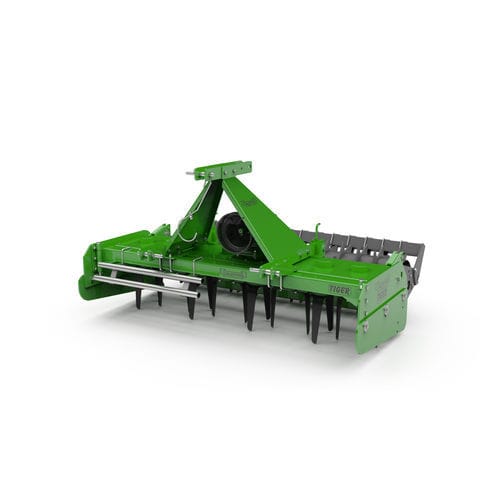

Power harrow TG-TIGER

depth controlwith roller

The TIGER rotary harrow has been designed to meet the demands of small farming companies and specialised cultivations such as fruit and vegetable gardens and vineyards, achieving excellent results even on ploughed land with a low rate of crop residue, in addition to refining land previously worked with other equipment. Blade shaft couplings on ball bearings on both the bottom and top part of the gearbox. Standard Equipment •3 point universal hitch (Category 2) •Single speed unit, 540 rpm •Central cardan with safety bolt (tractor side fork 1 3/8” 6) •Space between rotors, 22 cm •Circular blade holder shaft (with cementation treatment) “HEAVY DUTY” version •Central and side gears (with cementation treatment), “HEAVY DUTY” version •Transmission body in oil bath •Two teeth per rotor •Adjustable height side skirting •Pin regulation of the levelling bar by height and distance from the blades In roller versions •Pin regulation of the rear rollers Safety •CE Safety protections
