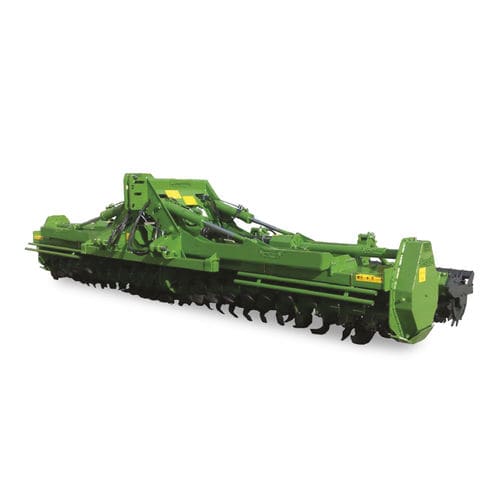

Folding rotary tiller ER-HERCULES

depth control

The HERCULES rotary tiller has been designed to meet the demands of large farming companies and is compatible with high-powered tractors. It can be used on hard soil and permanent pastures, in addition to land with a high rate of crop residue. Thanks to the “By Valentini 4G” 4-gear side transmission, excellent results can be obtained in terms of working speed, while reducing tractor consumption to a minimum. The HERCULES is fitted with a large-diameter rotor for greater working depth. The advantage of the folding machine is that once all its parts have been closed, it can be transported by road in compliance with current regulations. Standard Equipment •3 point universal hitch (Category 3 and 4) •Front oscillating bar hitch •Ready for attachment of fixed front bars for quick coupler category 3 •Central anchor •Single speed unit, 1000 rpm •Reinforced rotor diameter 600 with “HIGH STRENGTH STEEL” flange •6 helical hoes per flange •Idle side support in oil bath •External scraper blades •Central fixed cardan (tractor side fork 1 3/4” Z20) •Side cardan with disk clutch •Hydraulic opening and closing of the bodies with 4 jacks and controlled block valves •Lateral transmission with gears in oil bath “by Valentini-4G” •Bearing supports with special seals, “Labyrinth Bearing Protection by Valentini” •Adjustable rear sheets with “Fast Regulation” shock absorbers In roller versions •Rear rollers regulated by 4 hydraulic jacks with block valves •Larger roller parallel to the transmission •Automatic rear roller alignment device “by Valentini” •Casing protection cap
