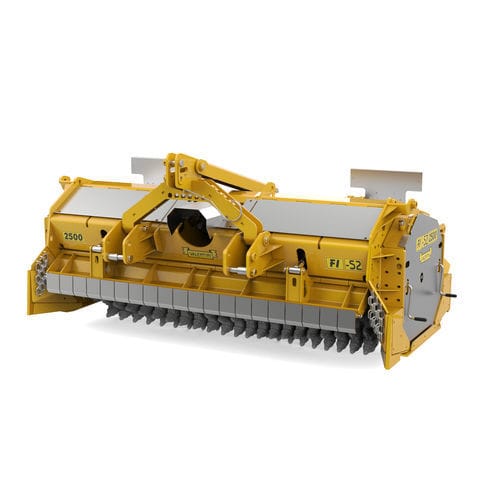

Stone crusher with hydraulic adjustment FI – IVAN 2T S2

The IVAN stone crusher is the perfect machine for farmers and third-party contractors that work in the road maintenance sector, carrying out professional works in difficult conditions, using tractors with a super reducer or variable transmission. The wide working surface and rotor diameter mean that the IVAN can be used not only in the agricultural sector but also to build roads, given its ability to crush the existing road bed (asphalt, concrete or gravel) and mix the material with components used to build the new road. The machine is available with a single or double side transmission with gears. Standard Equipment •3 point universal hitch (Category 3ª and 4ª) •Single speed unit, 1000 rpm •Reinforced rotor, 730 diam. with peaks •Rotor with 35 Ø peaks in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL” •Transmission support protection rings •Central cardan with safety bolt (tractor side fork 1” 3/4 Z20) •Double lateral transmission with gears in oil bath “by Valentini-4G” •Bearing support with special seals, “Labyrinth Bearing Protection by Valentini” •Rear containment sheets and selection grids for crushed product that can be adjusted with a HYDRAULIC jack •Front conveyor adjustable with HYDRAULIC jack •Hydraulic adjustment of sledges for work depth •Protective shroud casing and sledge on outer side •Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL” •“By Valentini” friction phasing system
