Chain automatic feeding system Feeding

spiralpoultryhopper

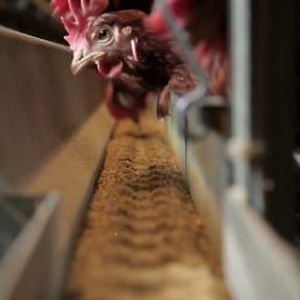

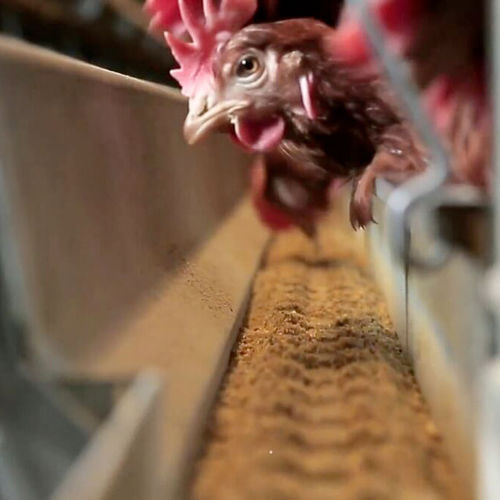

The Flat Chain system can be used for all the equipment – PULLETS, LAYING HENS and BREEDERS. One multi-hopper tower for the feed for each row of cages is standard; two multi-hopper towers may be set up to divide the chain into two circuits and reduce the run time and feed selection. • Feed level adjusted by a graded shutter • One feed hopper per circuit as standard • Two feed hoppers available on long colony rows • For the colony system installed in the Valli feed trough • For the aviary system installed in the proper feed trough • Control panel to: • Set starting times • Set Running times • Set sequence times per each floor to reduce electrical load • The Chain Speed can be 12-18 mts/min (40-60ft/min) • Each circuit is driven by a motor gear box respectively to the chain speed of 0.75-1.1Kw Finally we have a SPIRAL feed system used to supply the feed dishes in the equipment for BROILERS and used as an additional feeding system for distribution onto the litter in the LAYING HENS ENRICHED Modulo MEU.
