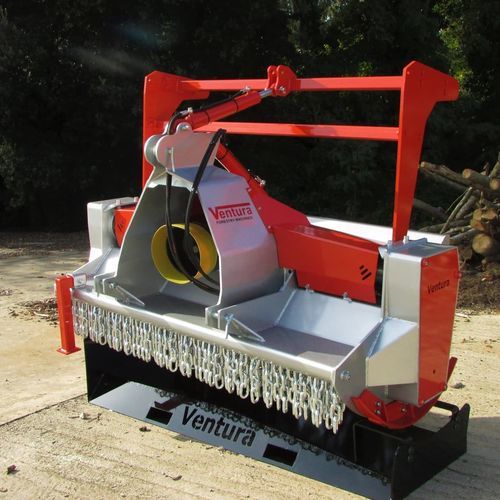

Mounted mulcher TFVJD JURUA series
hammerforestry32 hammers

Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers
Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers
Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 2
Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 3
Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 4
Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 5
Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 6
Mounted mulcher - TFVJD JURUA series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 7
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
forestry
Number of hammers
32 hammers, 36 hammers, 40 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

2,000 mm, 2,250 mm, 2,500 mm
(78.74 in, 88.58 in, 98.43 in)

Rotational speed

1,000 rpm
(6,283 rad.min-1)

Tractor power

Max.: 160 ch
(160 hp)

Min.: 75 ch
(75 hp)

Weight

1,506 kg, 1,608 kg, 1,710 kg
(3,320.16 lb, 3,545.03 lb, 3,769.9 lb)

Description

TFVJD - Forestry mulcher with 360º swinging hammers and double drive for logs up to ø25cm Forestry mulcher TFVJ best suited for trunks up to 200mm diameter and for all types of wood, gardening and agricultural uses. Equipment: • Compact and robust design made of high yield sheet plate. • Sufficient protections to safeguard the operator’s safety. • Easy maintenance. • Freewheel included in the gearbox. • Timing belts SPBX. • Hydraulic rear door • Very strong hammer holder shaft made of anti-wear steel plate with swinging hammers. • Hammers forged for a long life and heavy work. • Double cut hammers. • Widia hammers with tungsten tip. • Depth setting skids made of anti-wear steel. • Third point category II. • Transmission (optional). • Rear pushing bar (optional). • Reverse gearbox - so that the mulcher can be frontmounted (optional). • Rear roller control. (optional)
