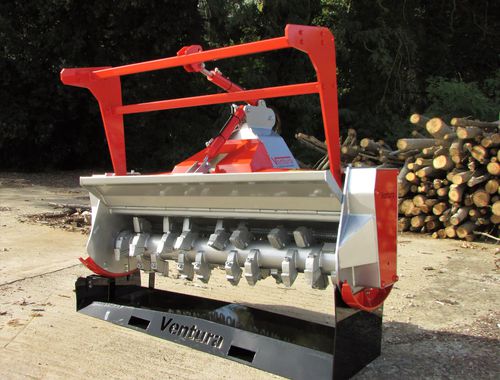

Mounted mulcher TFVJMFD VAAL series
hammerforestry32 hammers

Mounted mulcher - TFVJMFD VAAL series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers
Mounted mulcher - TFVJMFD VAAL series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers
Mounted mulcher - TFVJMFD VAAL series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 2
Mounted mulcher - TFVJMFD VAAL series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 3
Mounted mulcher - TFVJMFD VAAL series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 4
Mounted mulcher - TFVJMFD VAAL series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 5
Mounted mulcher - TFVJMFD VAAL series - VENTURA Maquinas Forestales S.L. - hammer / forestry / 32 hammers - image - 6
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
forestry
Number of hammers
32 hammers, 34 hammers
Other characteristic
PTO-driven, hydraulic, for tractors, fixed
Cutting width

2,000 mm, 2,250 mm, 2,500 mm
(78.74 in, 88.58 in, 98.43 in)

Rotational speed

1,000 rpm
(6,283 rad.min-1)

Tractor power

Max.: 160 ch
(160 hp)

Min.: 75 ch
(75 hp)

Weight

1,344 kg, 1,446 kg, 1,548 kg
(2,963.01 lb, 3,187.88 lb, 3,412.76 lb)

Description

TFVJMFD - FORESTRY MULCHER WITH FIXED WIDIA HAMMERS AND DOUBLE DRIVE FOR LOGS UP TO ø25cm Forestry mulcher best suited for trunks up to 200 mm diameter and for all types of wood, gardening and agricultural uses. Equipment: • Compact and robust design made of high yield sheet plate. • Suffi cient protections to safeguard the operator’s safety. • Easy maintenance. • Freewheel included in the gearbox. • Timing belts SPBX. • Hydraulic rear door • Fixed widia hammers. • Depth setting skids made of anti-wear steel. • Third point category II. • Transmission (optional). • Rear pushing bar (optional). • Skids for depth work. (optional) • Reverse gearbox - so that the mulcher can be frontmounted (optional). • Rear roller control. (optional)
