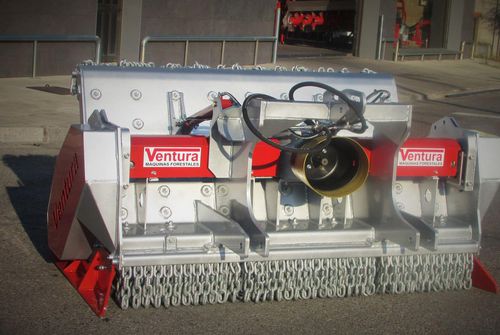

Mounted mulcher TPVD ARKANSAS serieshammer32 hammers34 hammers
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer
- Number of hammers
- 32 hammers, 34 hammers
- Other characteristic
- PTO-driven, hydraulic, for stones
- Cutting width
1,800 mm, 2,000 mm, 2,250 mm, 2,500 mm
(70.87 in, 78.74 in, 88.58 in, 98.43 in)- Rotational speed
1,000 rpm
(6,283 rad.min-1)- Tractor power
Max.: 230 ch
(230 hp)Min.: 100 ch
(100 hp)- Weight
2,610 kg, 2,724 kg, 2,840 kg
(5,754.07 lb, 6,005.39 lb, 6,261.13 lb)
Description
Suitable for Crushing stones, soil milling, road maintenance and stone recycling. It converts the stones into dust in order to fulfil site preparation purposes.
Equipment
-All formed with replaceable Hardox sheet wear the entire chassis.
-Robust machine made in high yield steel chassis in order to withstand the most intense efforts
-Detachable anti-wear plate frame & back cover for easy changeover.
-Can crush stones from 1 to 20 cm.
-Milling depth 13 cm.
-Widia Hammers with tungsten tip, specially treated.
-Sufficient protections to safeguard the operator’s safety.
-Easy maintenance.
-Adjustable counter knife against wear.
-Freewheel in the gearbox
-Belt Driven
-Timing Belts SPBX
-Hydraulic rear door.
-Depth setting skids made of anti-wear Steel (standard).
-Third point category III.
-Transmission (standard).
-Push Bar (optional).
-Third hydraulic point (optional).
-Centrifugal starter clutch (optional).
-Rear grader blade (optional)
-Rear roller control(optional).
