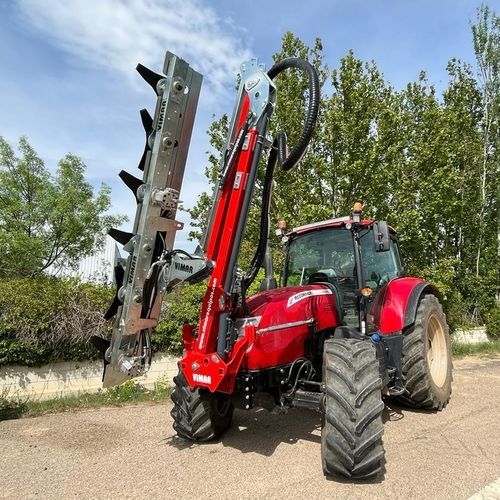

Tractor-mounted pre-pruner Pvf30

Disc prepruner for jobs up to 7.45 m high. With special discs for trees in both intensive and traditional cultivation, to be mounted in front of the tractor. The cut can range from branches up to Ø8 cm, depending on the disc mounted. Standard equipment: CAT II rear hydraulic center hitch Electric joystick in cabin Adjustable rest support feet Double hydraulic cylinder system for lifting the second arm 4 Movements with double-acting hydraulic cylinders Special steel discs with z=86 Ø8 cm max. branch 150 L rear hydraulic unit with reinforced chassis, radiator and oversized pump Central multiplier and cast iron pump High quality pumps and motors Bondioli&Pavesi 1 hydraulic motor for 5-disc heads and 2 motors for 6-disc heads Counterplate for hitching to the tractor Branch evacuation deflectors on all discs Second arm lifting system with deformable bars for more cutting head positions Mechanical tilt of the 6th disc for bass trimming (only for the 6 disc) Bolts and cardan for the hydraulic power plant Protections to avoid accidents according to CE standards Optional equipment: Disc Ø600 z=100 for max. branches Ø5cm Disc Ø600 z=86 for max. branches Ø8cm Progressive engine start kit Vacuum triple blade CAT II front linkage kit Left counterweighing drawer Right counterweighing drawer Electric disinfection kit Transmission supplement with independent motors - mod. 5 discs Transmission supplement with independent motors - mod. 6 discs
