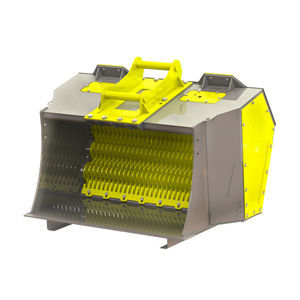

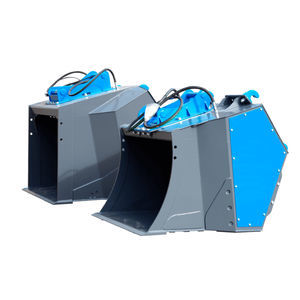

Screening shovel bucket VPH 2-1500for agricultural maintenancefor excavationfor loaders
Add to favorites
Compare this product
Characteristics
- Type
- screening
- Applications
- for agricultural maintenance, for excavation
- Other characteristic
- for loaders
- Width
1,620 mm
(63.8 in)- Capacity
Min.: 0.6 m³
(21.19 ft³)Max.: 0.7 m³
(24.72 ft³)- Bucket weight
1,500 lb
(680.39 kg)- Carrier weight
Min.: 8,800 lb
(3,992 kg)Max.: 22,000 lb
(9,979 kg)
Description
VPH 2-1500 is a popular screening bucket model designed especially for skid steer loaders and small excavators. This versatile screening bucket is excellent for screening and processing various types of materials.
Technical Specifications
Flow Rate
Oil Flow min – max: 11 — 26 gal /min
Pressure
Oil Pressure: 3,000 psi
Volume
Screen area: 6.5 ft2
Dimensions
Height: 33.0 in
Depth: 41 3/10 in
Features
-Lightweight
-Easy and quick to use
-Wide range of blade options
-Ideal for both excavators and wheel loaders
-Cost-effective
In the design of Vipermetal screening buckets, user needs and comfort have been taken into account. The screening bucket is easy to attach and detach from the machine, saving time and effort on the job site. Additionally, its structural durability and reliability ensure a long lifespan and minimal maintenance requirements
