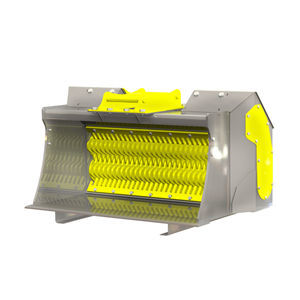

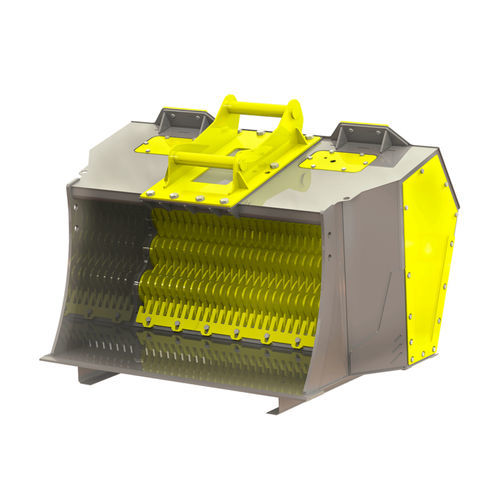

Screening shovel bucket VPH 3-1500for agricultural maintenancefor excavationfor loaders
Add to favorites
Compare this product
Characteristics
- Type
- screening
- Applications
- for agricultural maintenance, for excavation
- Other characteristic
- for loaders
- Width
1,720 mm
(67.7 in)- Capacity
Min.: 0.7 m³
(24.72 ft³)Max.: 0.83 m³
(29.31 ft³)- Bucket weight
2,200 lb
(997.9 kg)- Carrier weight
Min.: 15,000 lb
(6,804 kg)Max.: 31,000 lb
(14,061 kg)
Description
VPH 3-1500 is a versatile high-quality screening bucket model that is suitable for various screening, processing, and also light crushing of different materials.
Technical Specifications
Flow Rate
Oil Flow min – max: 18 — 58 gal /min
Pressure
Oil Pressure: 3,000 — 3,600 psi
Volume
ISO/SAE: 0.92 — 1 yd3
Screen area: 11 ft2
Dimensions
Height: 39.0 in
Depth: 47.0 in
Features
- Lightweight
- Easy and quick to use
- Wide range of blade options
- Ideal for both excavators and wheel loaders
- Cost-effective
In the design of Vipermetal screening buckets, user needs and comfort have been taken into account. The screening bucket is easy to attach and detach from the machine, saving time and effort on the job site. Additionally, its structural durability and reliability ensure a long lifespan and minimal maintenance requirements
Catalogs
VPH3-1500
1 Pages
