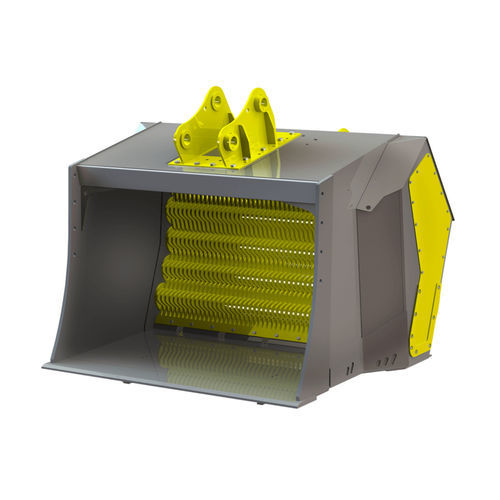

Screening shovel bucket VPH 4-2300demolitionconstruction sitefor excavation
Add to favorites
Compare this product
Characteristics
- Type
- screening
- Applications
- for excavation, construction site, demolition
- Other characteristic
- for loaders, high-capacity
- Width
104 in
- Capacity
Max.: 4.5 m³
(158.92 ft³)Min.: 3.9 m³
(137.73 ft³)- Bucket weight
7,170 lb
(3,252.26 kg)- Carrier weight
Max.: 99,000 lb
(44,906 kg)Min.: 46,000 lb
(20,865 kg)
Description
VPH 4-2300 is the flagship of the Viper screening bucket range. A powerful, high-capacity screening bucket designed for screening large volumes. With additional sides, the bucket volume can reach up to 1,500 gal
Technical Specifications
Flow Rate
Oil Flow min – max: 53 — 95 gal /min
Pressure
Oil Pressure: 3,000 — 3,600 psi
Volume
Screen area: 26 ft2
Dimensions
Height: 67.0 in
Depth: 76 4/5 in
Features
- Lightweight
- Easy and quick to use
- Wide range of blade options
- Ideal for both excavators and wheel loaders
- Cost-effective
In the design of Vipermetal screening buckets, user needs and comfort have been taken into account. The screening bucket is easy to attach and detach from the machine, saving time and effort on the job site. Additionally, its structural durability and reliability ensure a long lifespan and minimal maintenance requirements
Catalogs
VPH4-2300
1 Pages
