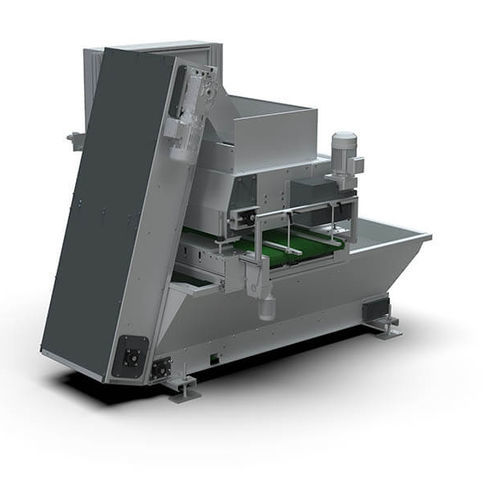

Automatic tray filler VTF

with template

The VTF Filler is a unique template-based filling machine that gives a nice and clean filling result. No soil is spilled using a template that matches the pot/tray combination. The VTF Filler is fully adjustable in template size, speed, and filling density. -Clean and uniform filling -Adjustable templates and filling density -Special design for tall pots in trays The VTF Filler is suited for pots in a carrier tray where the top of the pots is not equal to the top of the carrier tray and for pots in trays with space between the pots. Using a template that matches the tray format, the soil ends up in the pot or the tray cell, and no soil is spilled. It is easy to change to a different tray size by simply changing the template. The VTF filler can achieve a capacity of 750 trays per hour. The template filler gives a clean result by first collecting the trays on a conveyor belt, which is then pushed upwards to the template to avoid any spillage. An integrated brush mounted at the filling head cleans the top of the pot. By changing the number of filling cycles, soil compactness can easily be changed. The maximum tray dimensions are 950 x 600 x 200 mm (SSL) // 1050 x 600 x 200 (LSL). The hopper volume contains 1000 liter and is expandable to 1850 liter. Options •Open driven roller including height setting •Driven brush including height setting •Extension soil hopper to 1,850 liters •Gripbelt mounted in soil hopper •Blow off set. Set exist of an air supply set and 10 flexible blow off nozzles mounted in the tunnel •4x Transportwheels. The wheels are height adjustable and will be mounted on the frame Wide version templates
