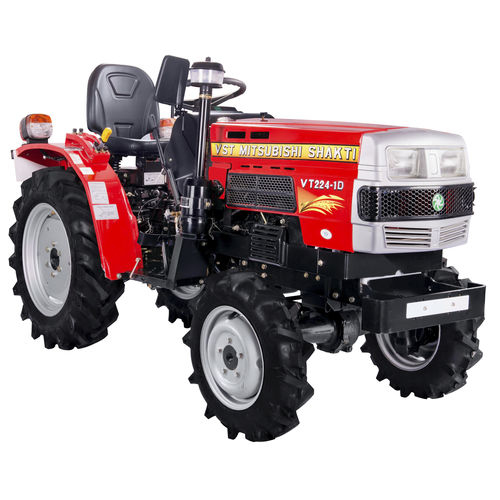

Low-profile tractor VT 224 1D
mechanical transmission3-point hitch4 wheel drive

low-profile tractor
low-profile tractor
Add to favorites
Compare this product


Characteristics

Type
low-profile
Transmission
mechanical transmission
Other characteristic
4 wheel drive, 3-point hitch
Engine power

22 ch
(22 hp)

Displacement

980 cm³
(33 US fl oz)

Wheelbase

1,420 mm
(55.9 in)

PTO speed

3,000 rpm
(18,849.6 rad.min-1)

Maximum speed

1.4 km/h, 20.2 km/h
(0.9 mph, 12.6 mph)

Fuel tank capacity

18 l
(4.8 gal)

Total length

2,540 mm
(100 in)

Total height

1,250 mm
(49.2 in)

Weight

740 kg
(1,631.4 lb)

Description

Model:V3D Type: 4 Stroke, Over Head Valve Bore:73mm Stroke:78mm Compression Ratio:23:1 Max. Torque:5.5 Kg-m/2200 rpm SFC (Specific Fuel Cons):225gm/hp-hr Cooling System:Water Cooled Radiator with compensatory tank Starting System:Starter Motor 12 Volts-1.6KW Dry Weight:125 Kgs
