Irrigation valve 6111 Series

for controlhydraulicmetal

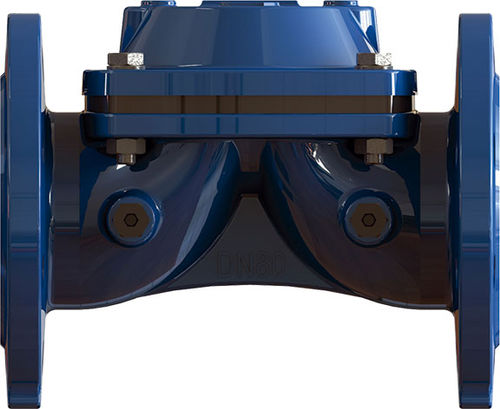

VYR-6111 METAL FLANGE HYDRAULIC VALVE Metal hydraulic valves for full flow through elbows and straight sections FEATURES Metal hydraulic valves for full flow through elbows and straight sections. - THREAD: 1", 2", 2 1/2" y 3" - SLOT: 3", 4" y 6" Body and cover made of high quality cast iron. EPDM diaphragms reinforced with fabric. Always clean because of its brass filter with steel mesh built into all assemblies. Assembled with screws and stainless steel spring. SEE ASSEMBLY OPTIONS IN THE TABLE. Working temperature between 2 and 80 degrees. Recommended working pressure of 1 to 12 bar. Opening and closing response time of 0.7 seconds. Resistance test carried out for 25,000 cycles at 15 bar and 80 degrees. Flow range between 38 and 240 l/min. Removable from the upper section for repair or replacement of parts. Complies with standard UNE 68-074-86/ISO 7714. APPLICATIONS Agricultural irrigation, sports facilities, golf courses, urban and commercial areas. Industrial use for fluid control. Drip irrigation and greenhouses.
