Impact sprinkler 23 ANTI-FROST Series

low-angle

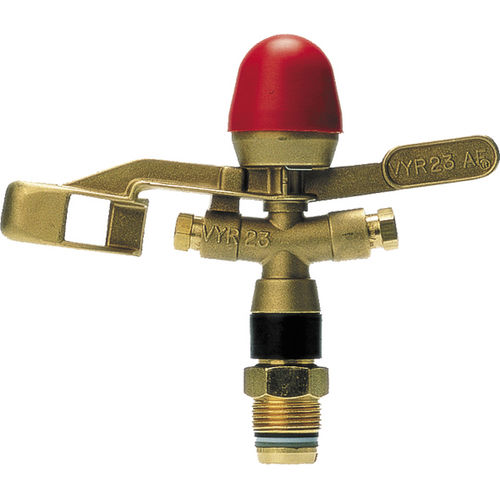

VYR-23 ANTI-FROST AG FULL-CIRCLE ANTI-FROST SPRINKLER VYR-23 LA (BRASS 3/4") The sprinkler VYR-23 is an ANTI-FREEZE circular low angle model. Made ​​of brass and with a connection 3/4 male or female. Its axis and springs are made of stainless steel and O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market. With a cap to protect the spring, guaranteeing a perfect sprinkler running despite frost periods. The wide range of brass or plastic nozzles offer multiple combinations. This sprinkler is designed to work under a flow range between 600 and 3270 l / h, at pressures between 1.7 and 4.5 bar and with a coverage range between 10 and 13.5 meters away. The sprinkler VYR-23 can work with one or two nozzles; The main nozzle is 7 degrees of inclination to the horizontal plane and the secondary 7 degrees. Their average time of rotation comes to be approximately 40 sec. / 360 (3 BAR, 4.40 x2, 40 mm). APPLICATIONS Horticultural plantations, cereals, tubers, legumes, and fruit. Designed to work in low-angle pair on Pivots in areas with high winds and under ANTI-FROST conditions.
