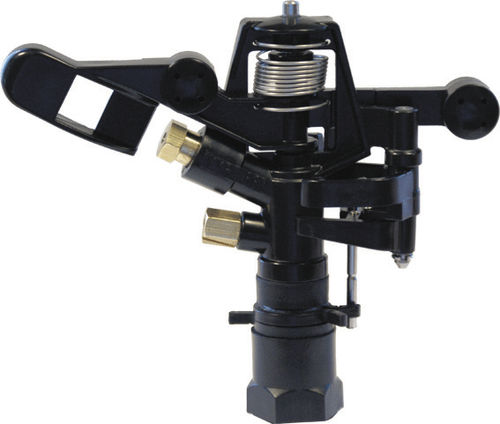

Impact sprinkler 66 Series

VYR-66 AG PART-CIRCLE SPRINKLER VYR-66 (PLAST. 3/4") The sprinkler VYR-66 is a sectoral agricultural sprayer, molded with plastic and has two references connection 3/4 "male and female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, tetrafluoroethylene and special polycarbonate to withstand contact with the most aggressive fertilizers in the market. The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 800 and 3270 l / h, at pressures between 1.75 and 5 BAR and cover a range between 12 and 19 meters in diameter. The sprinkler VYR-66 can work with one or two nozzles; The main nozzle has 30 degrees of inclination from the horizontal plane and the secondary 11 º. Its average time of rotation comes to be approximately 25 sec. / 360 (3 BAR, 4.40 x2, 40 mm). For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 8x8 meters to 18x18 meters rectangular frames and 8x8 meters to 19x19 meters to triangular frames. The most common use given is for irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers APPLICATIONS Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.
