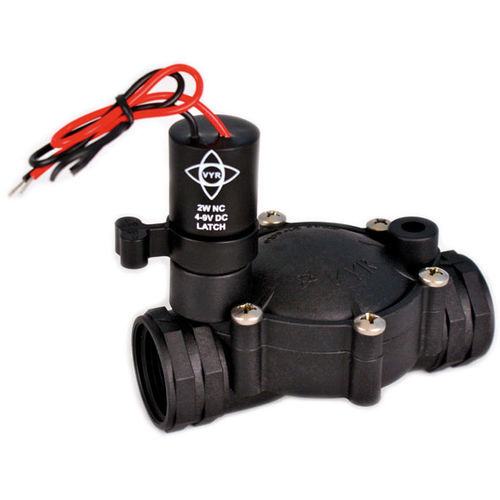

Irrigation valve 6150 Series

for controlelectric

VYR-6150 HI-FLOW HI-FLOW VALVES Two way High-Flow valve. It's body design allows full flow with 1", 1 1/2", 2" and 3" female thread FEATURES Two way HIGH-FLOW valves, body design allows full flow. 1", 1 1/2", 2" and 3" female thread BSP. Kit for manual opening with 1/4" lever turn. Valve body made of nylon 6.6 with 30% fibreglass. Permanently clean because of the built-in steel mesh filter. Assembled with screws, shaft and spring made of stainless steel. Body with brass inserts for screws. EPDM diaphragms reinforced with fabric. 24 VAC solenoid (SEE OPTIONS). Working temperature between 2 and 80 degrees. Recommended working pressure of 1 to 12 bar. Opening and closing response time of 0.5 seconds. Resistance test carried out for 25,000 cycles at 15 bar and 0-80º Celsius degrees. Built-in flow regulator. Flow range between 38 and 240 l/min. Removable from the upper section for repair or replacement of parts. Recomended working pressure of 1-10 BAR. Works at very low flows and pressure (0,6 BAR), ideal for drip irrigation. Resistant when operating with wastewater. Complies with standard UNE 68-074-86/ISO 7714
