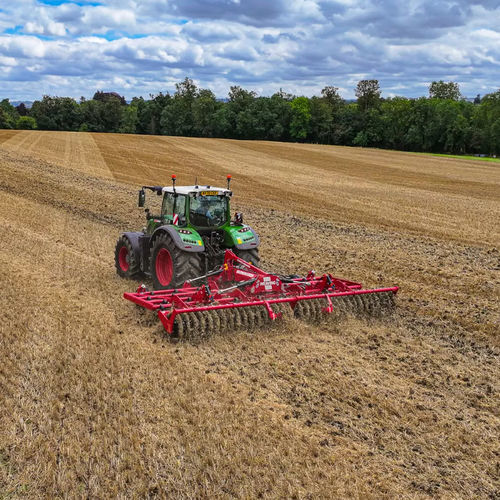

Towed field cultivator Energiser

with rollerwith hydraulic adjustmentspring tine

The Energiser is a tillage machine suitable for seedbed preparation, straw redistribution and soil loosening. Working depth is between 0 and 15cm (6”). 167mm spacing between legs is similar to our Sabre drill allowing for high volumes of trash to flow through and ensure all ground is worked. The 4 rows of 40mm points are mounted to the frame using coil tines allowing for a variety of different points to be used. These are followed by a full width ‘V’ ring roller to leave a level finish. Removable scraper arms allow for quick replacement and to aid clearing larger debris. All models can be fitted with a Magnum Seeder for cover crop, grass and OSR establishment. The Energiser is currently available as a 6-metre working width, with additional working widths under development. Standard Specification 36 coulters of heavy-duty coil tines across 4 rows with 40mm reversible points and 167mm leg spacing, a full width 700mm Ø heavy duty 'V' ring packer roller. 6” maximum working depth, with hydraulic depth control adjustment using coloured aluminium spacers. Cat III linkage, LED work lights. 2.7m transport width, hydraulic transport safety lock. 180 HP minimum power requirement, 8-12kph recommended working speed. Key Features 4 Rows of Tines The coiled tines have been staggered across 4 rows with 500mm row-to-row spacing to allow high volumes of trash clearance, with suspension allowing the 40mm tine to oscillate, further aiding trash flow and reducing stress on the machine.
