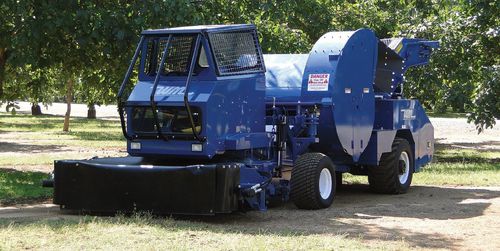

Almond harvester machine Magnum X

walnutself-propelled2-row

DESCRIPTION The Magnum X Harvester features a full 48” straight thru pickup, separation, and elevation system with an airlock at the dirt chain to control dust. Enlarged vacuum and separation chambers provides a cleaner load, at faster ground speed. The Magnum X is powered by a Cummins QSB4.5, 130HP Tier 3 turbo-charged diesel engine. The engine is rear mounted, allowing for improved visibility to all sides, a quieter, cooler operator area, a lighter picking head that won’t sink into soft dirt, while the rear mounted engine puts weight on the drive wheels for increased traction. PRODUCT SPECIFICATIONS Availability: Outside US Only Engine: Cummins QSB 4.5, 4.5 L, 140 HP, Tier 3/Stage IIIA Dirt Chain: Belted bar, twin-rod, mesh, tube and flat wire Pickup Type: 48” belt w/twin rod or molded cleats Windrow Capacity: 48" Standard -Climate controlled cab -Bank out hydraullics Options -Front wheel sweeps -Paddle wheels -Herbst cart hydraulics Dimensions -Length: 246" -Height: (configuration dependent) -Width: 93" -Wheelbase: 104"
