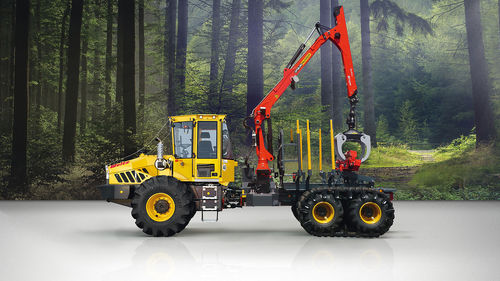

Forestry skidder with grab W130M

self-propelledwith grab

The W130M is a compact 6-wheel multipurpose machine that can be used as a clam bunk skidder, crane, pulley and forwarder (up to 5-meter logs). The W130M can be equipped with the new SIB drive for seamless distribution. Specifications Engine -Volvo Penta 4-cylinder Motor, water-cooled -torque max. 840 Nm at 1,200-1,500 RPM -emissions stage EU V, with SCR catalytic converter and particel filter displacement 5130 ccm -electronically controlled ventilator drive/Cleanfix as an option -fuel tank capacity approx. 250 litre -AdBlue® tank 25 litre Working hydraulics -Load-sensing hydraulic system -Regulating pump with max. 280 l/min at 2,100 RPM -biodegradable hydraulic oil, 290 l Power Transmission - SIB -Hydrostatic power unit with 2-gear Transmission, which can be switched when driving (SIB) -Planetary axles with multi-disc brakes running in oil bath, for W130K: Rear axle tandem axle -front and rear 100% separated switchable differential locks -Dual-circuit braking system, spring-controlled parking Brakes -three drive mode stages which can be switched when driving -Crawler gear, driving with fixed speed, driving with reduced speed Speed -1st gear 0 - 13 km/h -2nd gear 0 - 34 km/h Electric System -Wel-Can with 5-driver memory; all important information retrievable on modern display -System voltage 24 V -Battery power 2 x 95 Ah -Alternator 110 A Steering -Articulated steering, steering movement +/- 46°
