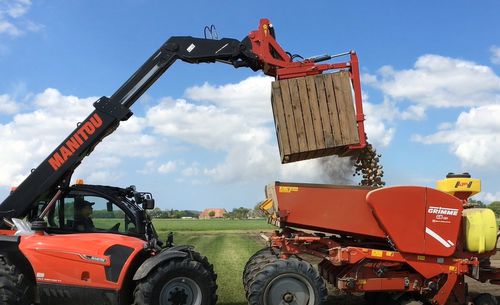

Box tipper with clamping system K75 Series

Forward tipping box rotator for telehandlers ■ 110° tipping angle + vehicle tilt angle ■ Only suitable for telescopic forklift (because of tilting space) ■ Suitable for all marks of telehandlers ■ No rotation elements next to the box ■ Suitable for boxes with or without bottom deck ■ Box depth adjustable between 850 - 1250 mm ■ Box height adjustable between 800 - 1250 mm ■ Complete with hydraulic hoses and quick connectors ■ Standard equipped with sequence valve (2 hose connection) K75A: ■ Suitable for box widths between 1200 - 1800 mm ■ Two fixed forks as standard (790 mm centers) ■ 1 clamping cilinder K75B: ■ Suitable for box widths > 1800 mm ■ With FEM2 fork carriage (1460 mm) and two adjustable forks instead of welded forks ■ 2 clamping cilinders
