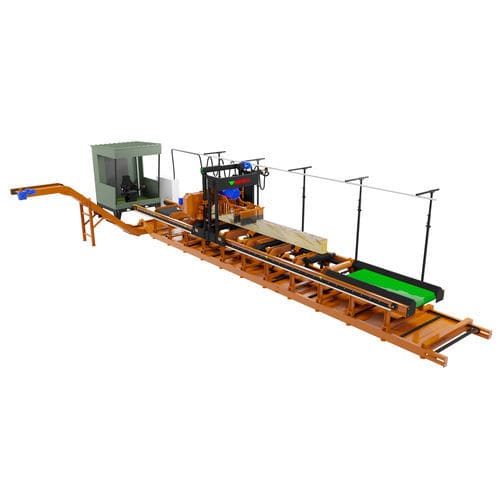

Band sawmill CZ-1/XP

horizontal

The latest sawmill in which we applied technologically advanced solutions implemented in the CZ-1/ZT sawmill - a machine dedicated to the Polish Armed Forces. Technical data Dimensions: •length 12 000 mm •width 2600 mm •height 2700 mm •lenght with operator's cabin + 2000 mm •length with moving floor + 1000 mm •width with moving floor + 4400 mm •height with moving floor + 320 mm Weight:4 500 kg Log diameter:1000 mm (band saw guiding rollers inter-distance 900 mm) Length of cut (standard):8000 mm Main motor power:20 kW (high torque low speed) Power supply:400 V (3-phases) Cutting head : •up/down feed electrical on chains solved on servo drive motor •smooth forward/backward feed inverter controlled solved on servo drive motor •feed speed rate 0 ÷ 120 m/min Band wheels diameter:700 mm Band saw specification: - •length 5600 mm •width 30 ÷ 42 mm (optionally possible to mount 75 mm wide band saw) •width 1,1 ÷ 1,3 mm Implemented technologies: •sawmill control solved on joystics - 2 units •system of automatic workpiece cutting •band wheels cleaning system •enhanced system of feeding water •all feeds solved on servo drive motors •band saw waving sensor •band saw and side supports collision detecting sensor •operator's cabin with seat and touch panel •automatic drag-back boards system •camera fitted withing cutting head •screen with recorder •suspended power supply and control cables
