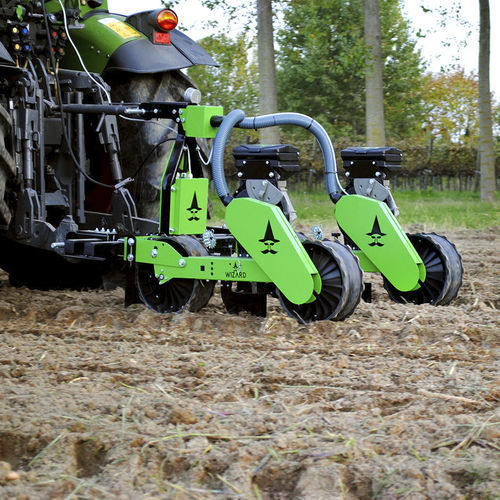

Pneumatic precision seed drill WZ-G Series

2-row3-row4-row

Vacuum precision planter for tractor not equipped with PTO (too carrier/robot) The WZ-G Series includes seed drills for small to medium sized tractors (about 50 hp). This series of seeders is equipped with a 12V powered vacuum fan and therefore does not require any PTO for use. Suitable for all those tractors or tool carriers that are without PTO. In addition, the vacuum fan control system can also be mounted on any additional type of frame and create the pneumatic precision seeder suitable for various types of tool-carrier tractors. Features 1. Three point linkage – CAT.1/ CAT. 2 2. Vacuum fan 12V 3. Control box 4. Power box 5. Power cable 500 cm 6. Vacuum gauge 7. Chassis 8. Parking stand 9. Clod remover 10. Soil wheel leveler 11. Sowing vacuum metering unit 12. 3 liter seed tank 13. Shoe opener and seed tube 14. Screw sowing depth adjustment 15. Change for seeding distance adjsutment 16. Heavy closing wheel and metering unit traction vacuum fan 12v Tractor application without cardan connection and without hydraulic motor. The 12V vacuum fan allows you to apply this series of seeders to any type of tractor or tool-carrier without the need for a cardan connection or an applied hydraulic motor. In addition to the 3 point linkage, it only needs to be connected to the 12V battery of the tractor on which it is applied. The planter absorbs a reduced amount of amps in work, maximum 35A. The vacuum fan is managed by a power box with on/off on the machine and the power regulated by a control box on the tractor. Filter maintenance is quick and easy, without the need for any tools.
