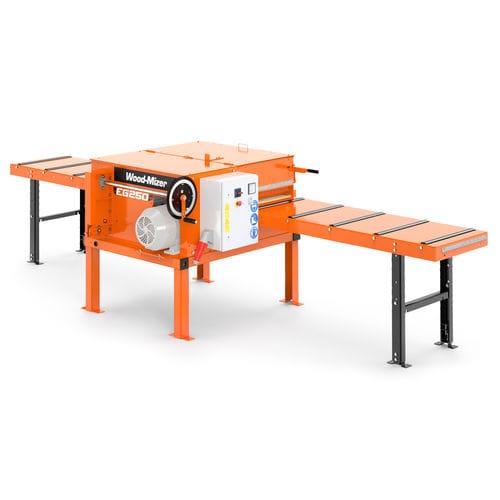

Circular sawmill EG250

horizontalstationaryelectric

The new EG250 is a straightforward twin-blade edger, designed to be affordable and reliable with simple edging functions. For woodworking shops looking for a dependable edger, but not requiring industrial-grade productivity features, the EG250 twin-blade board edger is a new solution. The edger is supplied with two circular sawblades, powered by an 11kW motor, or optionally a 15kW motor. One blade is fixed and the other is adjusted using a hand crank to change the edging width. The edger’s power feed system comes standard at 12 metres per minute, but a variable speed option can be added to allow from 0 to 20 m per minute. For boards that already have one straight edge, an adjustable fence allows the operator to quickly position boards for edging the second side. POWER SELECTIONS Power Selections - 11 kW E15 Electric 15 kW (20 HP) Electric CUTTING CAPACITIES Min. Width of Cut:60 mm (2.36") Max. Material Thickness:60mm (2.36") BLADE Blade Speed (RPM):2940 RPM (50Hz) 3520 RPM (60Hz) Number of Blades:2 Blade Diameter:350 mm (13.75") Blade Kerf:4 mm (0.16") Blade Adjustment Method:Manual Dial Blade position:Fixed on right side FEED SYSTEM & OPERATION Feed Speed:12 m/min (39 ft/min) (standard) 0-20 m/min (0-65 ft/min) (optional) Board Kickback Prevention:Anti Kick-back fingers Straight Edge Board Fence:Adjustable Board Fence Feed System:4 powered rollers
