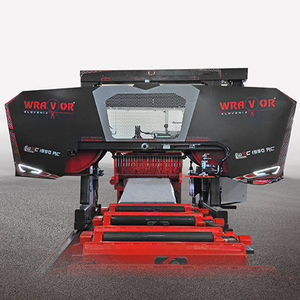

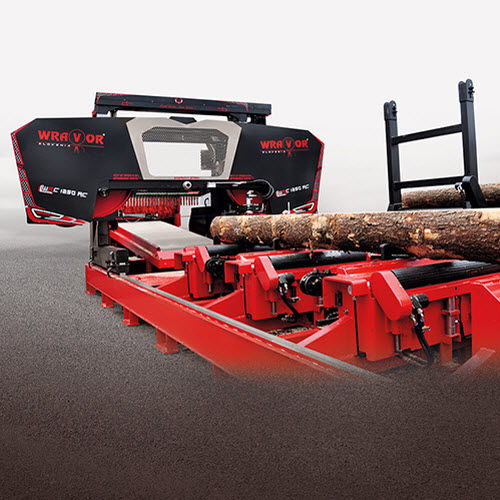

Band sawmill WRC 1250 AC

horizontalstationary

Horizontal bandsaws for high productivity sawmils •Fast and precise cut •Continuously controled cutting process with video & eye visualization •Precutter follows log shape •Pushing boards with guiding hand •Fast manipulating with log •Strong rails with extra weld hardened material, movable log turners, reinforced support , each roller movable (hight) + driven Technical data Diameter of main wheels [mm]:1250 Width of main wheels [mm]:135 Max. log diameter (Dmax) [mm]:ca. Max. Width between blade guides (Gmax) [mm]:1250 Bandsaw blade length/width [mm]:9045/160 Max. Thickness of cutted board (Hmax) [mm]:340 Max. Width between grips (Vmax) [mm]:1030 Motor type + (el. Mechanical brake / frequency inverter) [kW]:45/55 Cutting capacity [m3/8h:bis 55 Max. Elevation of headrig (Emax) [mm]:1150 Width of sawmill (Y) [cm]:6500 Total sawmill height (Z) [cm]:4400(4600
