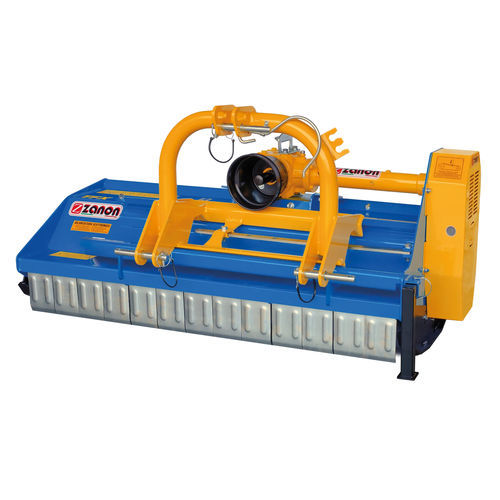

Mounted mulcher TFX series
hammerbladegrass

Mounted mulcher - TFX series - ZANON Srl - hammer / blade / grass
Mounted mulcher - TFX series - ZANON Srl - hammer / blade / grass
Mounted mulcher - TFX series - ZANON Srl - hammer / blade / grass - image - 2
Mounted mulcher - TFX series - ZANON Srl - hammer / blade / grass - image - 3
Mounted mulcher - TFX series - ZANON Srl - hammer / blade / grass - image - 4
Mounted mulcher - TFX series - ZANON Srl - hammer / blade / grass - image - 5
Mounted mulcher - TFX series - ZANON Srl - hammer / blade / grass - image - 6
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer, blade
Applications
grass
Number of hammers
24 hammers, 18 hammers, 22 hammers, 28 hammers
Number of knives
48 knives, 36 knives, 44 knives, 56 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

130 cm, 150 cm, 170 cm, 190 cm
(51.18 in, 59.06 in, 66.93 in, 74.8 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 80 ch
(80 hp)

Min.: 25 ch
(25 hp)

Weight

310 kg, 335 kg, 365 kg, 395 kg
(683.43 lb, 738.55 lb, 804.69 lb, 870.83 lb)

Description

Mulcher light duty • Helical cutting system • Mechanical/hydraulic side shift • It cuts prunings of max. ø 3-4cm The TFX mulcher is designed for mounting on low to medium power tractors (25-80 HP). It is ideal for mulching twigs, grass, brushwood, hay and more besides. Standard equipment • Gearbox with freewheel clutch PTO 1 3/8” Z6 • Rotor with helical cutting system • Side shift on iron rollers • Mechanical side shift • Corner reinforcement for shredding material • Height-adjustable skids • Rear levelling roller height adjustable (114 mm) • Scraper for rear levelling roller • Discharge of the material over the levelling roller • Opening hood (for inspection only) • Front protection with metal flaps • Protective equipment as per EC safety rules
