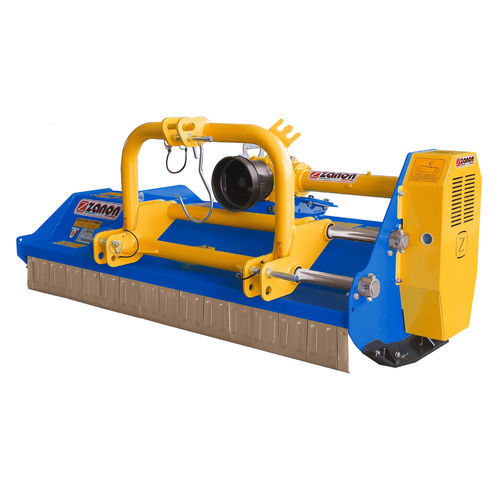

Mounted mulcher TFM/P series
hammerfor orchardsgrass

Mounted mulcher - TFM/P series - ZANON Srl - hammer / for orchards / grass
Mounted mulcher - TFM/P series - ZANON Srl - hammer / for orchards / grass
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
vineyard, for orchards, grass
Number of hammers
24 hammers, 18 hammers, 22 hammers, 28 hammers
Number of knives
48 knives, 36 knives, 44 knives, 56 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

130 cm, 150 cm, 170 cm, 190 cm
(51.18 in, 59.06 in, 66.93 in, 74.8 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Min.: 25 ch
(25 hp)

Max.: 80 ch
(80 hp)

Weight

265 kg, 305 kg, 345 kg, 386 kg
(584.22 lb, 672.41 lb, 760.59 lb, 850.98 lb)

Description

Mulcher light duty with discharge behind the roller • Helical cutting system • It cuts prunings of max. ø 3-4cm • Discharge of the material before the levelling roller The TFM/P mulcher is designed for mounting on low to medium power tractors (25 to 80 HP). It is ideal for mulching grass, maize, hay, pruning waste (in olive groves, orchards, etc.), brushwood and more besides. Standard equipment • Gearbox with freewheel clutch PTO 1 3/8” Z6 • Rotor with helical cutting system • Side shift on chrome bars • Mechanical side shift • Corner reinforcement for shredding material • Height-adjustable skids • Rear levelling roller height adjustable (114 mm) • Discharge of the material before the levelling roller • Rear protection with rubber • Front protection with metal flaps • Protective equipment as per EC safety rules
