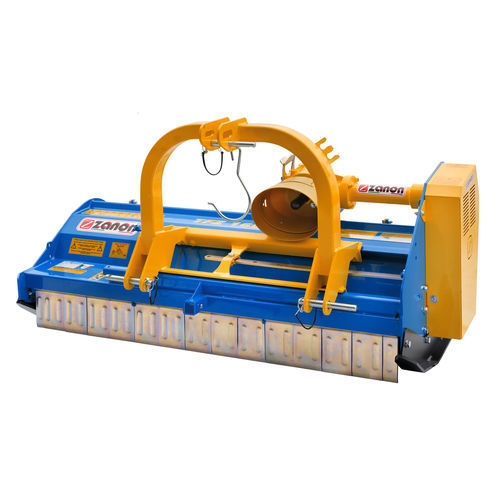

Mounted mulcher TFZ series
hammerbladefor orchards

Mounted mulcher - TFZ series - ZANON Srl - hammer / blade / for orchards
Mounted mulcher - TFZ series - ZANON Srl - hammer / blade / for orchards
Mounted mulcher - TFZ series - ZANON Srl - hammer / blade / for orchards - image - 2
Mounted mulcher - TFZ series - ZANON Srl - hammer / blade / for orchards - image - 3
Mounted mulcher - TFZ series - ZANON Srl - hammer / blade / for orchards - image - 4
Mounted mulcher - TFZ series - ZANON Srl - hammer / blade / for orchards - image - 5
Mounted mulcher - TFZ series - ZANON Srl - hammer / blade / for orchards - image - 6
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer, blade
Applications
vineyard, for orchards, grass
Number of hammers
20 hammers, 24 hammers, 18 hammers
Number of knives
48 knives, 40 knives, 36 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

140 cm, 160 cm, 190 cm
(55.12 in, 62.99 in, 74.8 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 100 ch
(100 hp)

Min.: 30 ch
(30 hp)

Weight

415 kg, 445 kg, 500 kg
(914.92 lb, 981.06 lb, 1,102.31 lb)

Description

Mulcher medium duty • Linear cutting system • It cuts prunings of max. ø 5cm The TFZ mulcher is designed for mounting on medium-high power tractors (30 to 120 HP). It is ideal for mulching twigs, grass, brushwood, hay and more besides. Standard equipment • Gearbox with freewheel clutch PTO 1 3/8” Z6 • Rotor with linear cutting system • Side shift on iron rollers • Mechanical side shift • Corner reinforcement for shredding material • Height-adjustable skids • Rear levelling roller height adjustable (140 mm) • Scraper for rear levelling roller • Discharge of the material over the levelling roller • Opening hood (for inspection only) • Front protection with metal flaps • Protective equipment as per EC safety rules
