Mounted mulcher TFB series
hammerfor orchardsgrass

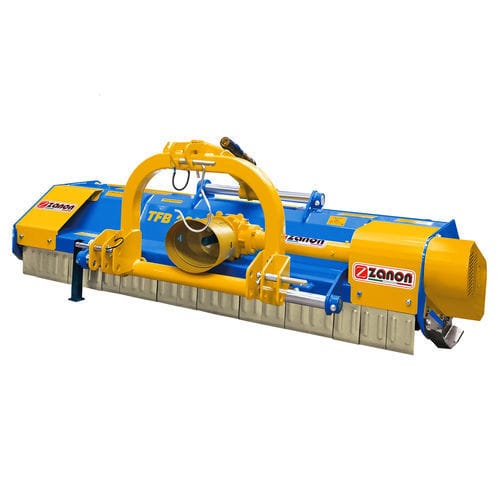

Mounted mulcher - TFB series - ZANON Srl - hammer / for orchards / grass
Mounted mulcher - TFB series - ZANON Srl - hammer / for orchards / grass
Mounted mulcher - TFB series - ZANON Srl - hammer / for orchards / grass - image - 2
Mounted mulcher - TFB series - ZANON Srl - hammer / for orchards / grass - image - 3
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
vineyard, for orchards, grass
Number of hammers
16 hammers, 20 hammers, 24 hammers, 18 hammers, 12 hammers, 22 hammers, 14 hammers, 26 hammers, 10 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Max.: 300 cm
(118.11 in)

Min.: 120 cm
(47.24 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 130 ch
(130 hp)

Min.: 30 ch
(30 hp)

Weight

Max.: 930 kg
(2,050.3 lb)

Min.: 505 kg
(1,113.33 lb)

Description

Mulcher medium duty • Low mulcher ideal for orchards • Helical cutting system • It cuts prunings of max. ø 5cm Low body height (only 50cm) makes the TFB mulcher ideal for general purpose shrub and pruning waste mulching in low foliage stem crops, orchards, olive groves and vineyards. It is ideal for mulching grass, maize, hay, pruning waste (in olive groves, orchards, etc.), brushwood and more besides. Standard equipment • Gearbox with freewheel clutch PTO 1 3/8” Z6 • Rotor with helical cutting system • Side shift on chrome bars • Mechanical side shift • Double row counter-blades • Height-adjustable skids • Rounded belt guard • Rear levelling roller height adjustable (194 mm) • Scraper for rear levelling roller • Discharge of the material over the levelling roller • Opening hood (for inspection only) • Double skinned frame • Front protection with metal flaps • Protective equipment as per EC safety rules
