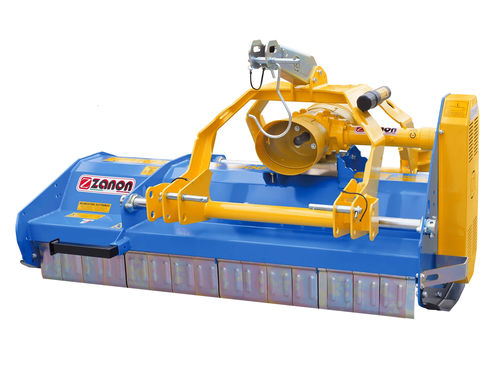

Reversible mulcher TRG seriesmountedhammerblade
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer, blade
- Applications
- vineyard, for orchards, grass, for landscaping
- Number of hammers
- 16 hammers, 20 hammers, 24 hammers, 18 hammers, 12 hammers, 28 hammers
- Number of knives
- 48 knives, 40 knives, 32 knives, 24 knives, 36 knives, 56 knives
- Other characteristic
- PTO-driven, hydraulic, for tractors, reversible
- Cutting width
Max.: 220 cm
(86.61 in)Min.: 100 cm
(39.37 in)- Rotational speed
540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)- Tractor power
Max.: 90 ch
(90 hp)Min.: 30 ch
(30 hp)- Weight
Max.: 720 kg
(1,587.33 lb)Min.: 470 kg
(1,036.17 lb)
Description
Reversible mulcher medium duty
• Smooth body to avoid contact damage
• Helical cutting system
• It cuts prunings of max. ø 5cm
• Reversible
• Double 3-point linkage PTO 540/1000rpm
The TRG reversible mulcher is designed for front or rear mounting on low to medium power tractors.
It is ideal for mulching grass, maize, hay, pruning waste (in olive groves, orchards, etc.), brushwood and more besides.
Standard equipment
• Gearbox with double freewheel clutch PTO 1 3/8” Z6
• Rotor with helical cutting system
• Side shift on chrome bars
• Mechanical side shift
• Double row counter-blades
• Height-adjustable skids
• Rear levelling roller height adjustable (194 mm)
• Scraper for rear levelling roller
• Discharge of the material over the levelling roller
• Front protection with metal flaps
• Protective equipment as per EC safety rules
