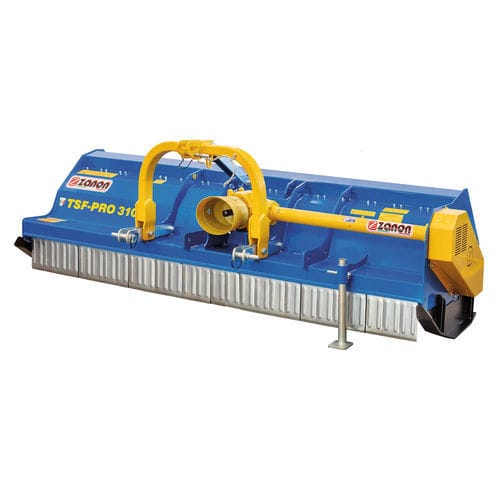

Mounted mulcher TSF-PRO serieshammerbladefor row crops
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer, blade
- Applications
- for row crops
- Number of hammers
- 24 hammers, 18 hammers, 12 hammers, 22 hammers, 26 hammers, 36 hammers, 30 hammers
- Number of knives
- 48 knives, 24 knives, 36 knives, 44 knives, 52 knives, 60 knives, 72 knives
- Other characteristic
- PTO-driven, hydraulic, for tractors, fixed
- Cutting width
Max.: 310 cm
(122.05 in)Min.: 120 cm
(47.24 in)- Rotational speed
540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)- Tractor power
Max.: 70 ch
(70 hp)Min.: 35 ch
(35 hp)- Weight
Max.: 1,380 kg
(3,042.38 lb)Min.: 750 kg
(1,653.47 lb)
Description
Mulcher heavy duty with side shift
• Linear cutting system
• 30cm inlet opening
• 3-point hitch movable in 2 fixed positions
• Body with increased chopping volume
The TSF-PRO mulcher is designed for mounting on medium to high power tractors (35 to 150 HP).
It is ideal for mulching hay, maize stalks and horticultural crop waste in vineyards and plant nurseries.
Standard equipment
• Rotor with linear cutting system
• Rotor with linear cutting system
• 3-point hitch movable in 2 fixed positions
• Double row counter-blades
• Height-adjustable skids
• Rear levelling roller height adjustable (194 mm)
• Scraper for rear levelling roller
• Discharge of the material over the levelling roller
• Opening hood (for inspection only)
• Double skinned frame
• Front protection with metal flaps
• Protective equipment as per EC safety rules
