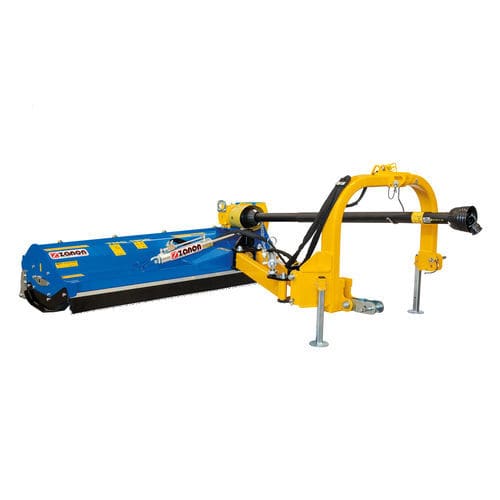

Offset mulcher TMC series

mountedhammerblade

Off-set mulcher medium duty with internal gearbox • Linear cutting system • Internal gearbox • It cuts prunings of max. ø 5-6cm • Mulcher inclination from +90° a -55° • Equipped with anti-shock device • Floating system to automatically adapt the machine to the ground The TMC off-set mulcher is designed for mounting on medium-high power tractors (50 to 150 HP). It is ideal for mulching grass and twigs in ditches, on verges, embankments, and in vineyards and orchards in general. The mower can be used centrally aligned or laterally displaced and functions at any angle from +90° to -55°. Lateral movement varies according to the model. Standard equipment • Gearbox with freewheel clutch PTO 1 3/8” Z6 • PTO drive shaft • Rotor with linear cutting system • Hydraulic side shift • Corner reinforcement for shredding material • Height-adjustable skids • Rear levelling roller height adjustable (140 mm) • Scraper for rear levelling roller • Discharge of the material over the levelling roller • Opening hood (for inspection only) • Double skinned frame • Front protection with rubber • Rear protection with rubber • Front protection with chains • Protective equipment as per EC safety rules
