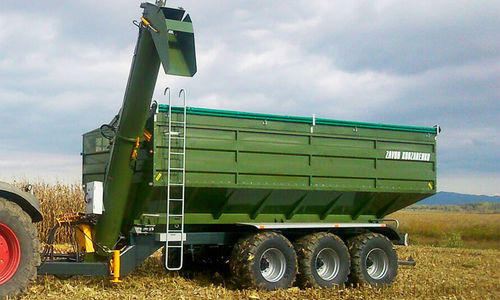

Chaser bin PBN-40

3-axlegrainwith pneumatic braking

Reloading trailer special constructed for transportation of grain from the combine and reloading it into other machines or containers. Also this machine can provide fast loading of seeders and loading BigBags. Main advantages: 1.Increasing of the combine threshing by more then 30% - harvester does not stop and unloads grain while moving. 2.Working on the wet field (Big tires with low pressure can easily goes through light swamps and mud). 3.Reducing of seeding machine idle time under loading (the productivity of seeding machines increases up to 30% per shift). 4.Weighing of grain on the field with the check issue or sending GPS data to an operator computer. 5.Grain reloading trailer consist of one of the best EU parts, for example: Italian suspension (ADR firm), Polish discs (Pronar) with BKT, Mitas tires. All reducers and cardan shafts are Italian (Bondioli and Pavesi). Technical characteristics of the reloading trailer 1.Tridem on springs with jet thrust (FAD, ADR Italy) axle 130х2300, front and back axels are maneuvering, what makes the trailer moves more easy on turns and prolong the tires time of use, back axel stalls hydraulically for backing 2.Tires 560х60 R22,5 (650/55 R 26,5) (load 6.3 т while 40km/h., BKT India), disks Pronar Poland 3.Pneumatic dual circuit brake system (possible: hydraulic,mixed) 4.Body V-40m3 vehicle capacity 30t. 5.Auger Ø500 mm (productivity 6t/min., unloading height 4,3m) 6.Replaceable trailed ring Ø40, 50, 90 mm (Scharmuller Austria) 7.Hydraulic trailer hitch brace 8.Driving reducer S2100 (produced by Bondioli and Pavesi, Italy) 9.Auger lip
