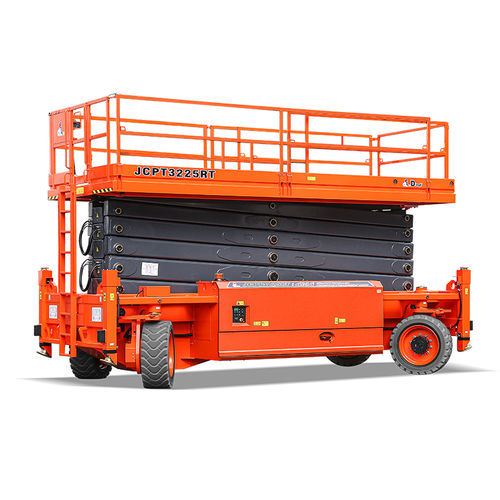

Pruning aerial platform JCPT3225RT

self-propelled

● Maximum working height of the machine is 32 meters, it realizes multiple people working at the same time ● The machine is driveable during the whole stroke with maximum load of 1000kg ● Equipped with a 6.20m*2.45m large working platform, the length of the one-button extension deck reaches 2.1m, which can be extended at any point, making it more convenient for operation. ● 4x4 drive & steering, gradeability reaches up to 40%, flexible operation and strong power ● Equipped with one button leveling function, automatic leveling, making the whole machine safer and more stable Max. Platform Height:30.00m/98ft 5in Overall Length(Without Outriggers):/ Overall Length(With Outriggers):6.73m/22ft 1in Overall Width:2.55m/8ft 4in Overall Height(Rails Up):4.13m/13ft 7in Overall Height(Rails Down):3.19m/10ft 6in Platform Size(Length×Width):6.20m×2.45m/20ft 4in×8ft Platform Extension Size:2.10m/6ft 11in Ground Clearance(Stowed/Raised):0.20m/8in Wheelbase:4.86m/15ft 11in Turning Radius(Inside/Outside):3.80m/6.30m / 12ft 6in/20ft 8in Tyres:15-625/15-625
