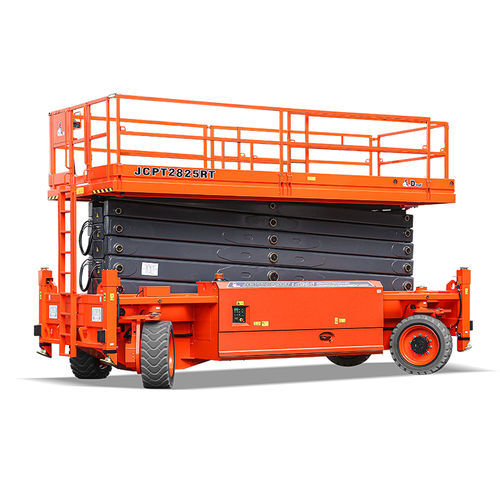

Pruning aerial platform JCPT2825RT

self-propelled

● Maximum working height of the machine is 28 meters, it realizes multiple people working at the same time ● The machine is driveable during the whole stroke with maximum load of 1000kg ● Equipped with a 5.48m*2.45m large working platform, the length of the one-button extension deck reaches 2.1m, which can be extended at any point, making it more convenient for operation. ● 4x4 drive & steering, gradeability reaches up to 40%, flexible operation and strong power。 ● Equipped with one-touch leveling function, automatic leveling, making the whole machine safer and more stable Max. Platform Height:26.00m/85ft 4in Overall Length(Without Outriggers):/ Overall Length(With Outriggers):5.96m/19ft 7in Overall Width:2.50m/8ft 2in Overall Height(Rails Up):4.13m/13ft 7in Overall Height(Rails Down):3.19m/10ft 6in Platform Size(Length×Width):5.48m×2.45m/18ft×8ft Platform Extension Size:2.10m/6ft 11in Ground Clearance(Stowed/Raised):0.23m/9in Wheelbase:4.10m/13ft 5in Turning Radius(Inside/Outside):3.50m/6.00m / 11ft 6in/19ft 8in Tyres:355/55D625
