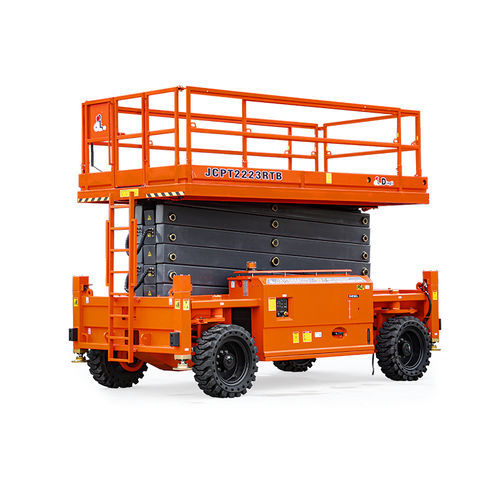

Pruning aerial platform JCPT2223RTB

self-propelled

● The whole can drive normally when full loading of 750kg at full height ● 4.59m*2.25m large working platform, 2.7m one-key extension platform, can stop at any point ● Ground clearance up to 0.4m, strong passability ● 4x4 drive and steer, turning radius 1.25m/3.4m, can steer in a narrow space, great flexibility ● Equipped with special sealed hydraulic drive system, the gradeability is 40% ● One-key leveling function, automatic leveling, safe and stable Overall Length(Without Outriggers):/ Overall Length(With Outriggers):4.95m/16ft 3in Overall Width:2.46m/8ft 1in Overall Height(Rails Up):3.86m/12ft 8in Overall Height(Rails Down):3.00m/9ft 10in Platform Size(Length×Width):4.59m×2.25m/15ft 2in×7ft 5in Platform Extension Size:2.70m/8ft 10in Ground Clearance(Stowed/Raised):0.40m/1ft 4in Wheelbase:3.30m/10ft 10in Turning Radius(Inside/Outside):1.25m/3.40m / 4ft 1in/11ft 2in Tyres:36×14-20
