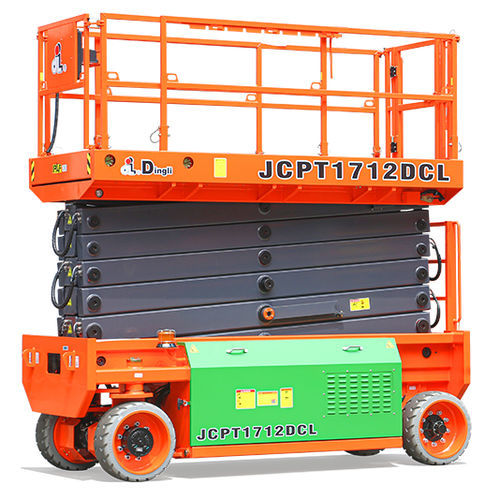

Pruning aerial platform JCPT1712DCL

self-propelled

● Driveable at full height of 17 meters with maximum load of 500kg ● Equipped with 48V420Ah high-capacity battery pack, realizing long-endurance operations ● Pure electric drive, no noise, zero emissions, energy saving and environmental protection ● 1.2m one-way extension deck, which can quickly reach the operation point ● The width of the machine is only 1.25m, making it easy to pass through narrow working conditions ● The machine adopts light weight design, weighing less than 8000kg, easy to transport Max. Platform Height:15.20m/49ft 10in Overall Length(Without Outriggers):/ Overall Length(With Outriggers):3.36m/11ft Overall Width:1.25m/4ft 1in Overall Height(Rails Up):3.24m/10ft 8in Overall Height(Rails Down):2.47m/8ft 1in Platform Size(Length×Width):3.04m×1.17m/10ft×3ft 10in Platform Extension Size:1.20m/3ft 11in Ground Clearance(Stowed/Raised):0.15m/0.025m / 6in/1in Wheelbase:2.49m/8ft 2in Turning Radius(Inside/Outside):0.60m/3.00m / 2ft/9ft 10in Tyres:22×9×16
