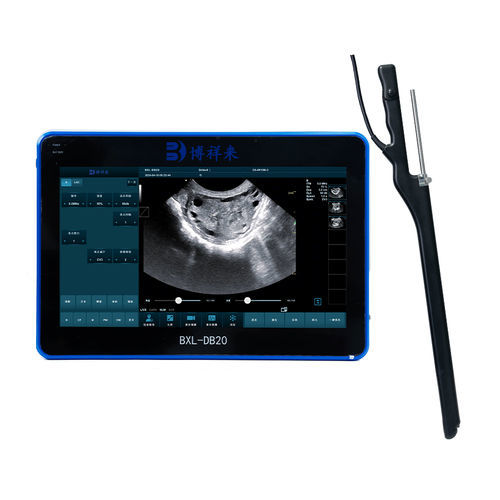

Portable veterinary doppler ultrasound system BXL-DB20

for cattlelinearOPU

1. Applicable conditions: waterproof and dustproof, IP54,anti-fall 2. Power supply: AC220V±10%，50Hz±1 3. Device weight: 6KGs 4. Main screen size: 15-inch; Touch screen Resolution: 1920*1080 5. The device has a handle (can be suspended), and a mobile bracket (adjustable angle), and can be suspended on a mobile cart. 6. Digital Channels:64 Channels 7. Imaging mode: Color Doppler imaging system 8. Scan depth: ≥30cm 9. Image display: 256 grayscale 10. Animal body marker: ≥24 Species 11. Wireless WiFi connection and Bluetooth connection wirelessly connect mobile phones and IPad synchronization display images with wireless remote control. RFID Electronic Ear Tag Scanning 12. Working time: ≥3 hours 13. Image, video storage. 14. Built-in professional OPU system program, can set the location direction of the oocyte retrieval needle. There are oocyte retrieval needle guide line, oocyte retrieval needle guide line with scale ruler, oocyte retrieval needle guide line with center line, oocyte retrieval needle puncture image enhancement processing. 15. Image rotation: 0 °, 90 °, 180 °, 270 ° rotation; Image flip: up and down. 16. Scan type: normal, compound extension, etc 17. Host with stylus, wireless connection keyboard, wireless connection mouse 18. Optional probe type: Animal OPU special micro-convex probe, animal special back fat linear arrar probe and other probes 19. Mage adjustment: Focus adjustment, focus position and quantity adjustable. The image frame is adjusted on average and the frame is adjustable on average. The spots are reduced with 5 adjustments. 20. Image Editing: Can edit stored images
