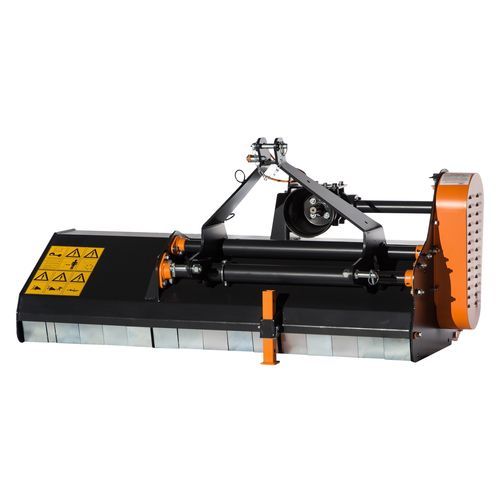

Mounted mulcher EDENhammergrassvineyard
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer
- Applications
- grass, vineyard
- Number of hammers
- 16 hammers, 20 hammers, 24 hammers, 12 hammers
- Number of knives
- 48 knives, 40 knives, 32 knives
- Other characteristic
- PTO-driven, hydraulic, for tractors
- Cutting width
1,200 mm, 1,400 mm, 1,600 mm, 1,800 mm
(47.24 in, 55.12 in, 62.99 in, 70.87 in)- Rotational speed
540 rpm
(3,393 rad.min-1)- Tractor power
18 ch, 20 ch, 25 ch, 35 ch
(18 hp, 20 hp, 25 hp, 35 hp)- Weight
230 kg, 250 kg, 270 kg, 300 kg
(507.06 lb, 551.16 lb, 595.25 lb, 661.39 lb)
Description
Shredding machine with side shifting
3-point hitch tractor mounted machine, especially recommended for grass cutting and branches shredding with diameter from 1 to 2 cm.
It is mainly used in vineyards, orchards, gardens, parks and small plots of corn.
STANDARD EQUIPMENT
• Forged hammer blades
• Adjustable support roller Ø 114 mm
• 3-point hitch Cat. 1 with mechanical shifting in two positions
• CE protection
OPTIONAL
Shifting device
• Hydraulic shifting device
Sleds
• Pair of sleds
Cardan
• Cardan shaft B3x800
Scraper
• Roller mud scraper L 1200
• Roller mud scraper L 1400
• Roller mud scraper L 1600
• Roller mud scraper L 1800
Double body
• Double body L 1200
• Double body L 1400
• Double body L 1600
• Double body L 1800
VIDEO
