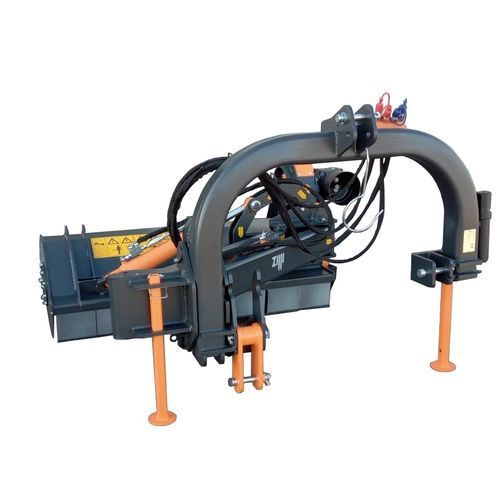

Mounted mulcher RIVA-E 4
hammer16 hammers20 hammers

Mounted mulcher - RIVA-E 4 - ZILLI - hammer / 16 hammers / 20 hammers
Mounted mulcher - RIVA-E 4 - ZILLI - hammer / 16 hammers / 20 hammers
Mounted mulcher - RIVA-E 4 - ZILLI - hammer / 16 hammers / 20 hammers - image - 2
Mounted mulcher - RIVA-E 4 - ZILLI - hammer / 16 hammers / 20 hammers - image - 3
Mounted mulcher - RIVA-E 4 - ZILLI - hammer / 16 hammers / 20 hammers - image - 4
Mounted mulcher - RIVA-E 4 - ZILLI - hammer / 16 hammers / 20 hammers - image - 5
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Number of hammers
16 hammers, 20 hammers, 24 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

1,600 mm, 1,800 mm, 2,000 mm, 2,200 mm, 2,600 mm
(62.99 in, 70.87 in, 78.74 in, 86.61 in, 102.36 in)

Rotational speed

540 rpm
(3,393 rad.min-1)

Tractor power

60 kW, 66 kW, 74 kW, 81 kW
(81.6 hp, 89.7 hp, 100.6 hp, 110.1 hp)

Weight

970 kg, 990 kg, 1,030 kg, 1,090 kg, 1,180 kg
(2,138.48 lb, 2,182.58 lb, 2,270.76 lb, 2,403.04 lb, 2,601.45 lb)

Description

The RIVA-E 4 shredder is designed for professional use. It is suitable for the maintenance of road sides, banks, ditches and hedges. The shredded residues are ejected behind the self-cleaning support roller. The machine moves on self-lubricating metal bushings. STANDARD EQUIPMENT • 540 rpm free wheel gearbox and external gear box • Forged hammer blades • Double body • Adjustable support roller Ø 194 mm • 3-point hitch linkage Cat. 2/3 • Mechanical anti-shock system • Rotation blocking valve • Cardan shaft • CE protection OPTIONAL Pair • Pair of sleds Joystick • Hydraulic operating kit with joystick Cardan shaft • Double homokinetic cardan shaft, supplement Roller with mud scraper • Roller with mud scraper L 1600 • Roller with mud scraper L 1800 • Roller with mud scraper L 2000 • Roller with mud scraper L 2200 • Roller with mud scraper L 2600
